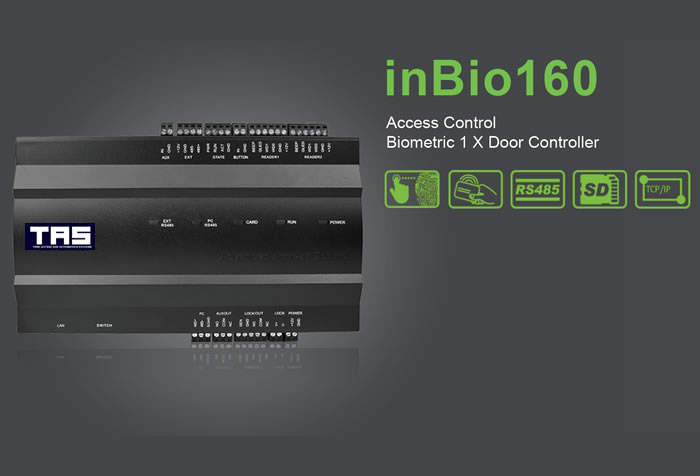

InBio carries out the matching and verification of fingerprints on the panel, itself. The FR Series of fingerprint readers transmit fingerprint templates to InBio via RS-485 for fast and accurate matching with templates stored in a data-base. InBio controllers install easily on your network and support both TCP/IP and RS-485 communication. The auto-discovery tool allows settings and modifications of network parameters directly and easily.
InBio continues to operate even if the network connection is interrupted. Along with relay contacts for controlling door locks, easily programmable auxiliary relays can be used for additional control and interface to the lights, alarms, annunciators, intrusion detection panels, or even extra locking devices or gate controllers.

• Over-current protection, over-voltage protection, and reversal protection for the power supply and all of the input and output terminals
• Reliable network system of controllers using either TCP/IP or RS-485 Serial communication
• Supports different Wiegand formats, and connects to fingerprint readers as well as HID, Mifare, and generic ID card readers
• Connects with a variety of electric locks, sensors, exit buttons, alarm devices, and indicators.

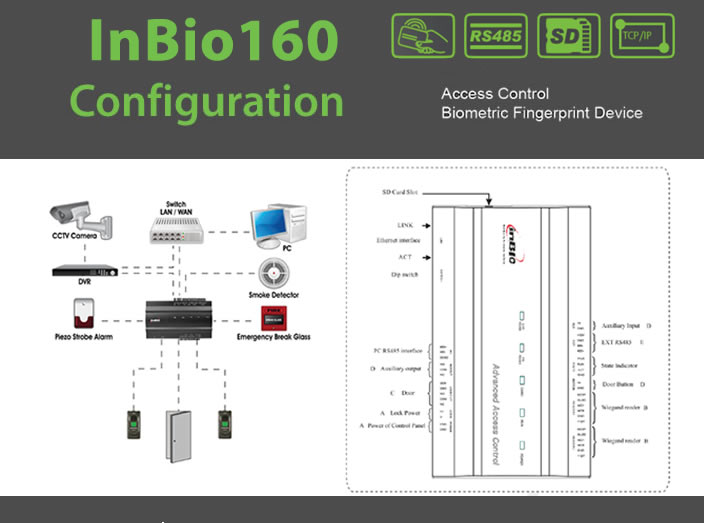

• Can be integrated with other security systems such as CCTV, Intrusion Detection, Fire Alarm Release, and Elevator Control for total security system. Directly compatible with biometric and fingerprint reader controllers.
• Easy-to-use and intuitive programming with the software
• System management by browser from client PC’s. No need to install software on each client
• Programming of special logic between doors is set up with simple pull down menus. No special scripts or code is required.
• Management software allows indication of real-time door status and remote commanding of doors' open/close states. Alarm conditions such as forced open and extended open alarms are reported
• Advanced access control capabilities are built into the hardware, including Anti-Passback, Dual and Multi-Card Authentication, and Duress Mode.
