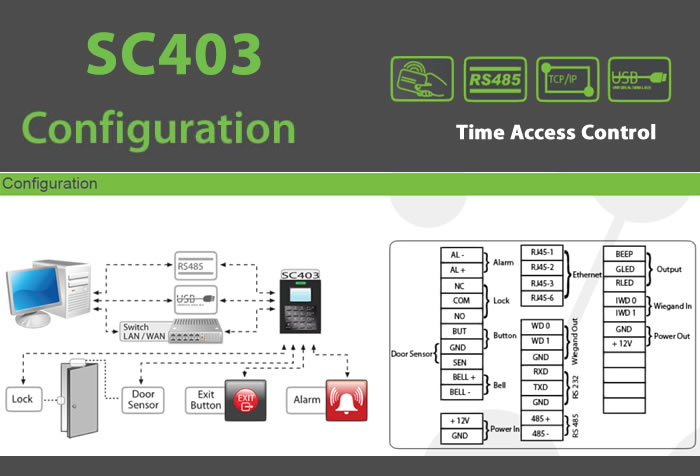

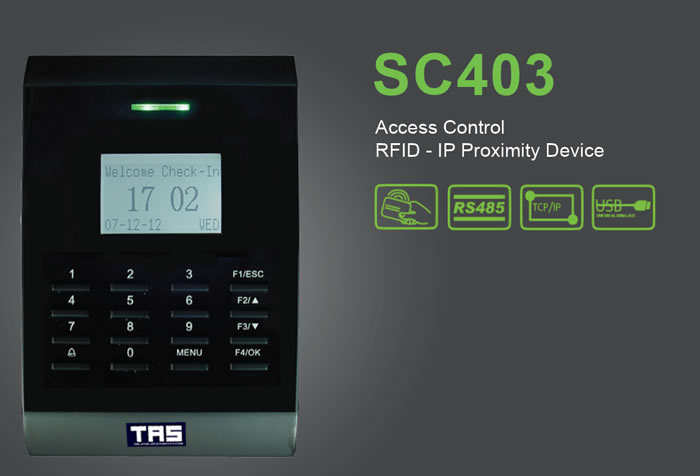

SC403 RFID - IP Proximity Device is an access control devices produced by ZK Software, which is made with elegant design and professional surface treatment. The device have lock control, alarm, exit button, door sensor. The Wiegand-input interface is used to connect external reader to construct a master and slave system. Also the device can be used to connect with a control panel as a reader by Wiegand-output interface. The operation can be done on the device through the LCD display and it can be done on the PC software, uploading to the device through TCP/IP, RS232/485 communication. The USB-host is used for data downloads and uploads, including user template and record etc. The SC403 is suitable for houses, small offices and factories etc.

• Embedded relay contacts - lock, door sensor, etc.
• Built-in Serial and Ethernet ports sensor
• Built-in Wiegand input/output ports
• Less than one second user recognition
• Stores 30,000 cards and 50,000 transactions
• Built-in USB port allows for manual data transfer
• Reads Pin's and/or RFID card
